ScreenCoder: Advancing Visual-to-Code Generation for Front-End Automation via Modular Multimodal Agents

A modular multi-agent framework that separates visual grounding, structural planning, and code generation to produce faithful and interpretable front-end implementations from UI screenshots and design sketches.

Yilei Jiang^* Yaozhi Zheng^* Yuxuan Wan^* Jiaming Han Qunzhong Wang Michael R. Lyu Xiangyu Yue^†

CUHK MMLab & ARISE Lab

^* Equal contribution · ^† Corresponding author

Paper Code Demo Dataset

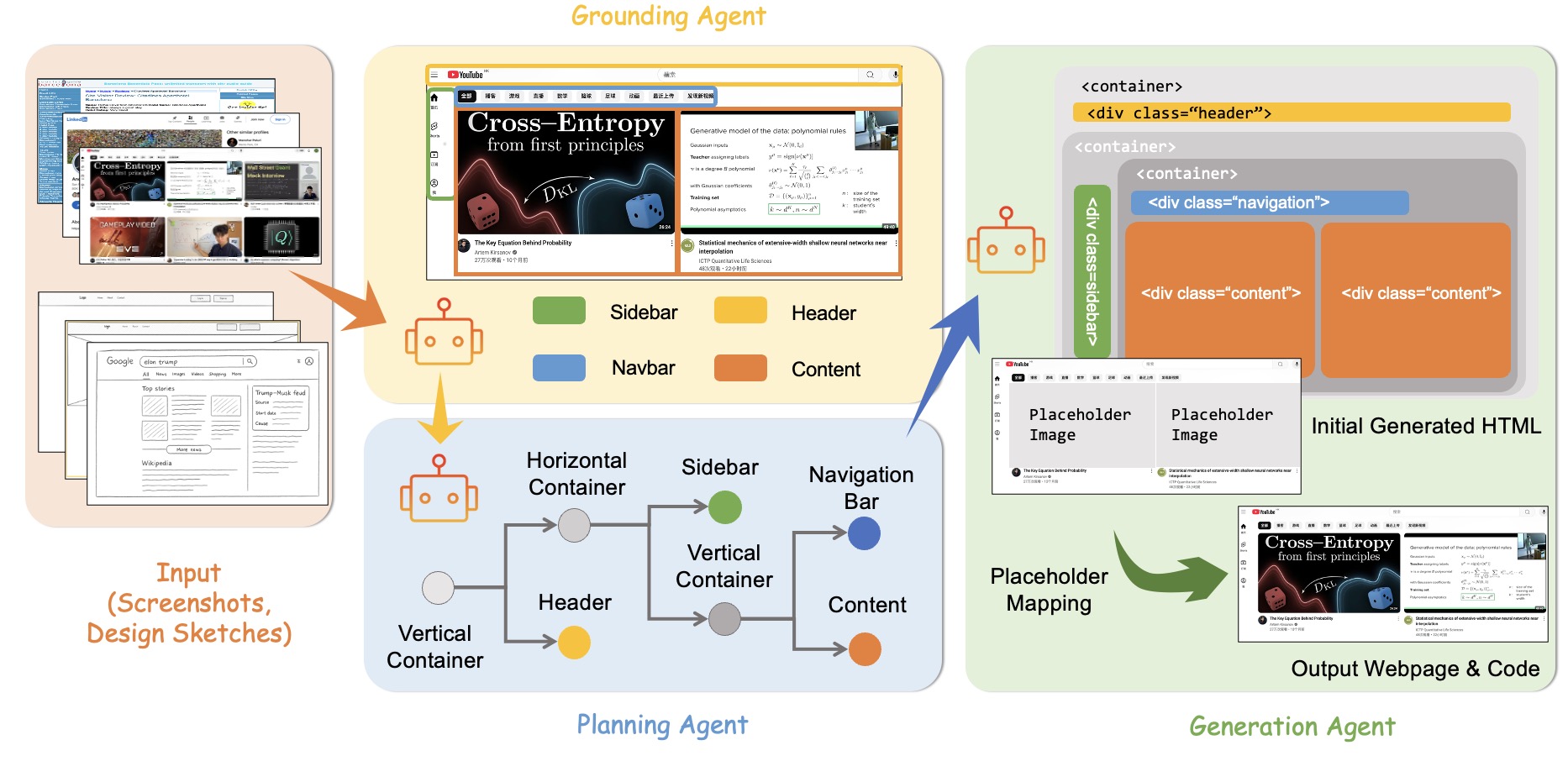

ScreenCoder overview showing screenshots and design sketches transformed through grounding, planning, generation, and placeholder mapping into webpages and code — ScreenCoder decomposes UI-to-code generation into interpretable, specialized stages.

Motivation

Why UI-to-Code Needs Structure

End-to-end multimodal models must perceive fine visual details, reason about nested layouts, and synthesize valid front-end code at once. ScreenCoder begins from two recurring failure modes observed in this monolithic setting.

Perception Errors

Small elements are omitted, text or colors are distorted, and interface components are assigned the wrong semantic roles.

Planning Errors

Correctly perceived elements are still misplaced or assembled into flat structures that do not reflect a coherent DOM hierarchy.

Method

A Modular Path from Pixels to Code

ScreenCoder assigns perception, structural reasoning, and synthesis to specialized stages, then restores visual assets through explicit placeholder matching.

1

Grounding Agent

Locates and labels major UI regions such as headers, navigation, sidebars, and content, providing a semantic spatial map.
2

Planning Agent

Converts grounded regions into a hierarchical, DOM-like layout tree using front-end engineering priors.
3

Generation Agent

Generates executable HTML and CSS from the layout tree, semantic context, and optional design instructions.
4

Placeholder Mapping

Matches detected visual assets to generated placeholders and restores image patches with optimal assignment.

A web-native summary of the modular ScreenCoder pipeline.

Interactive evidence

From Research Pipeline to Working Demo

The public demo exposes the full screenshot-to-code workflow and supports examples ranging from familiar websites to rough design drafts. This project page stays static and links to the hosted system.

Public Hugging Face Space

Inspect the end-to-end workflow on real UI screenshots.

Upload an interface image, review the generated layout and webpage, then download the resulting code package.

Open the Demo

Experiments

Evidence across ScreenBench and Design2Code

The paper evaluates block, text, position, and color consistency alongside CLIP similarity. Values below are reproduced from arXiv v2 tables; the full paper remains the authoritative source.

Selected main results

See full Table 1

Selected automatic evaluation results from ScreenCoder arXiv v2.
Model	ScreenBench					Design2Code
Model	Block	Text	Position	Color	CLIP	Block	Text	Position	Color	CLIP
GPT-4o	0.745	0.835	0.725	0.702	0.775	0.845	0.962	0.903	0.881	0.917
ScreenCoder (Agentic)	0.768	0.857	0.755	0.734	0.812	0.865	0.975	0.925	0.908	0.922
ScreenCoder (Finetuned)	0.758	0.841	0.742	0.718	0.791	0.849	0.968	0.913	0.886	0.915

Source note: arXiv v2 prose refers to 0.755 as a Block score, while Table 1 places 0.768 under Block and 0.755 under Position. This page preserves the table layout and does not promote either value as a standalone headline claim.

Dual-stage post-training

Qwen2.5-VL → SFT → RL

Effect of supervised fine-tuning and reinforcement learning.
Training stage	ScreenBench					Design2Code
Training stage	Block	Text	Position	Color	CLIP	Block	Text	Position	Color	CLIP
Base model	0.723	0.828	0.613	0.632	0.762	0.822	0.951	0.815	0.831	0.893
+ SFT	0.741	0.835	0.705	0.681	0.784	0.842	0.963	0.890	0.870	0.908
+ RL (Final)	0.758	0.841	0.742	0.718	0.791	0.849	0.968	0.913	0.886	0.915

65%ScreenCoder preferred over GPT-4o in pairwise visual fidelity

2.2×Faster average completion in the workflow usefulness study

4.6/5Average UI similarity score with ScreenCoder-assisted workflows

Data engine

From a Modular System to Model Post-Training

Beyond inference, ScreenCoder is used to curate clean image-code pairs and improve an open-source multimodal model through supervised fine-tuning and reinforcement learning.

50Kinitially collected webpages

10Kcurated Screen-10K pairs

9Kpairs for supervised fine-tuning

1Kpairs for reinforcement learning

ScreenBench

A benchmark of 1,000 contemporary webpage screenshot and HTML pairs for evaluating modern UI-to-code systems.

View the public dataset

Qualitative analysis

Structure Is Visible in the Output

The paper compares source screenshots, end-to-end baselines, and ScreenCoder outputs across diverse layouts. Public project assets populate this gallery in the visual implementation stage.

Case 01

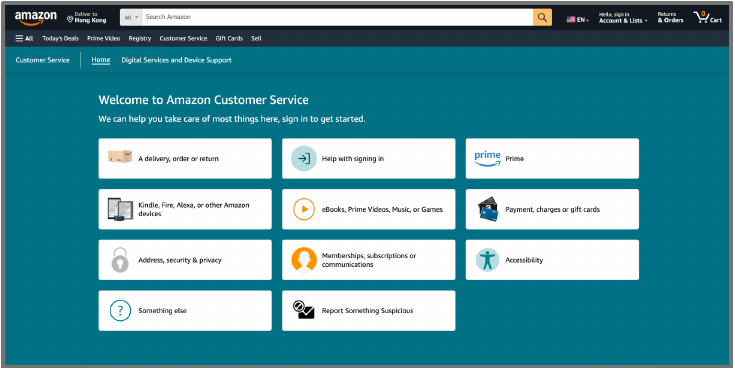

Amazon Customer Service

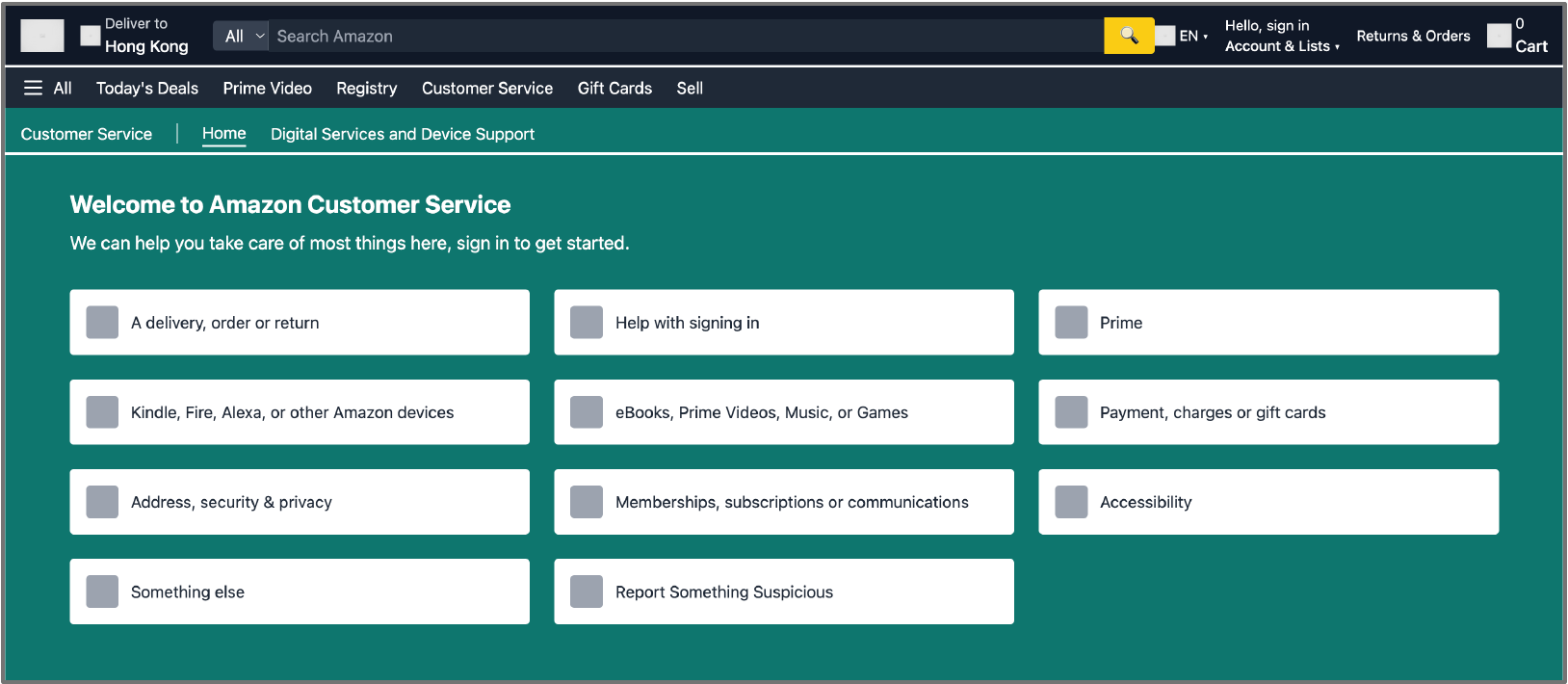

Amazon customer service webpage reproduced by ScreenCoder with preserved navigation, colors, and service-card hierarchy — **ScreenCoder**Ours

Case 02

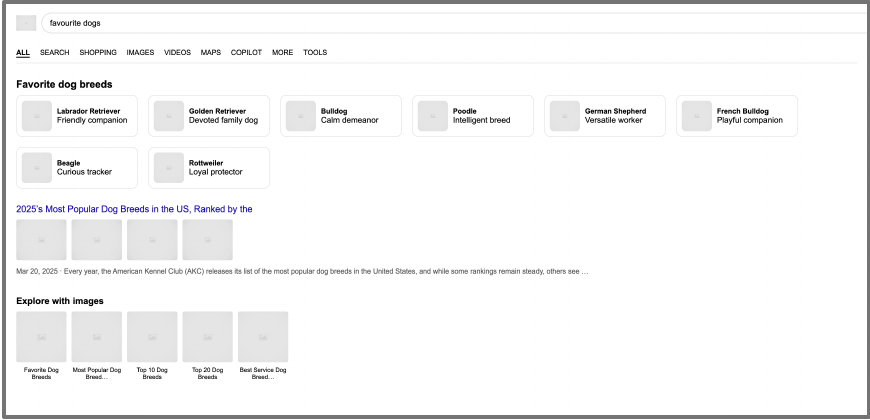

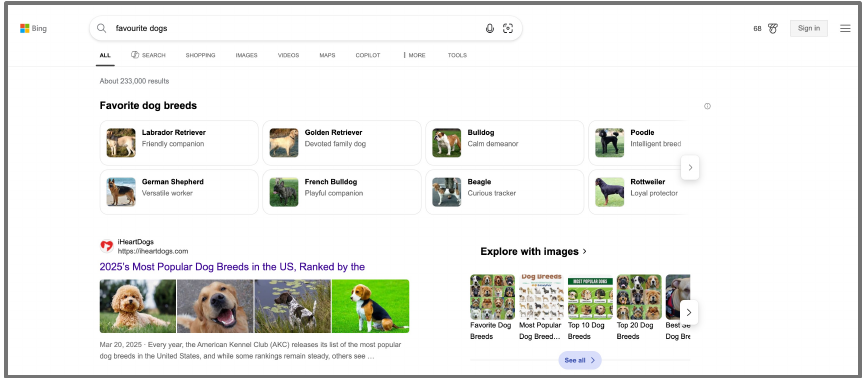

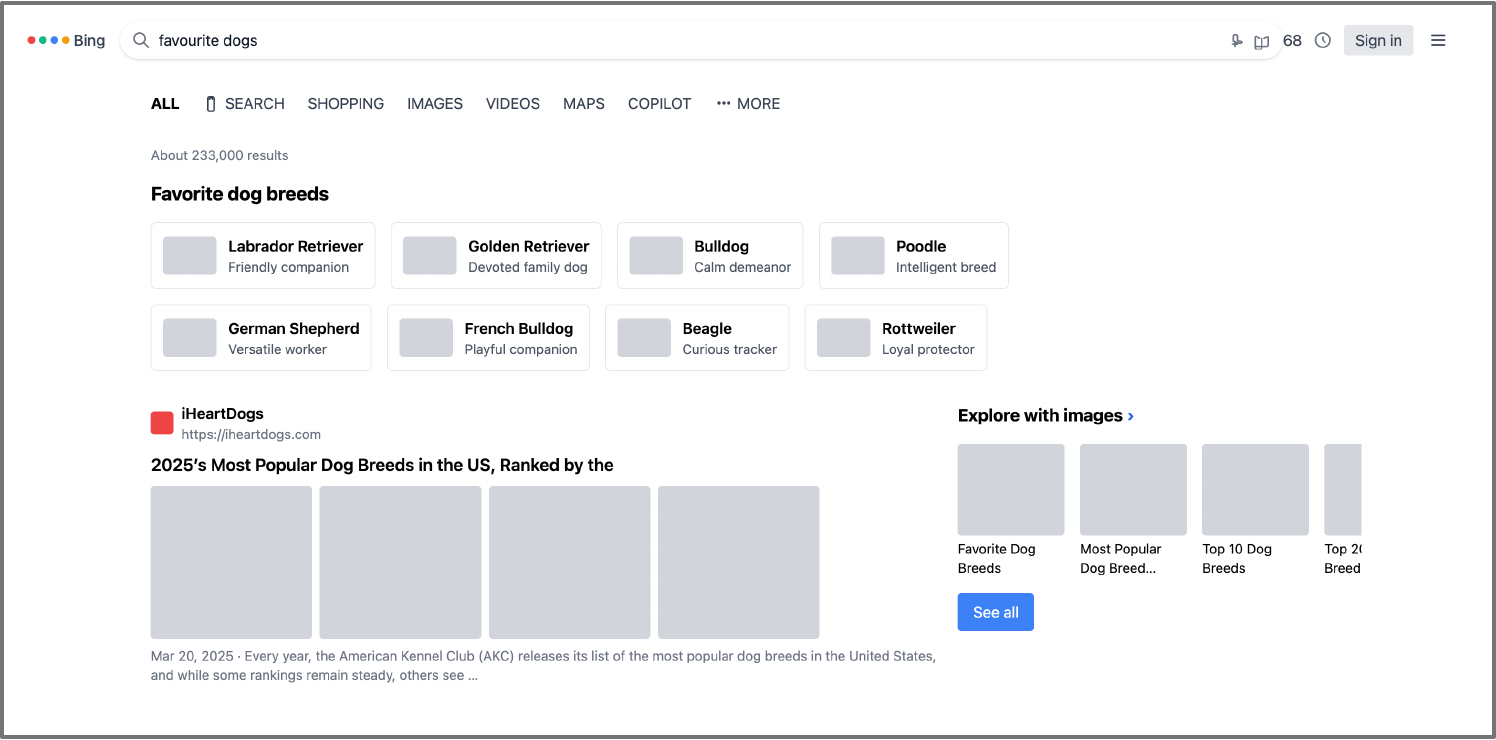

Bing Search Results

Bing search results webpage reproduced by ScreenCoder with its search hierarchy and two-column layout preserved — **ScreenCoder**Ours

Case 03

GitHub Profile

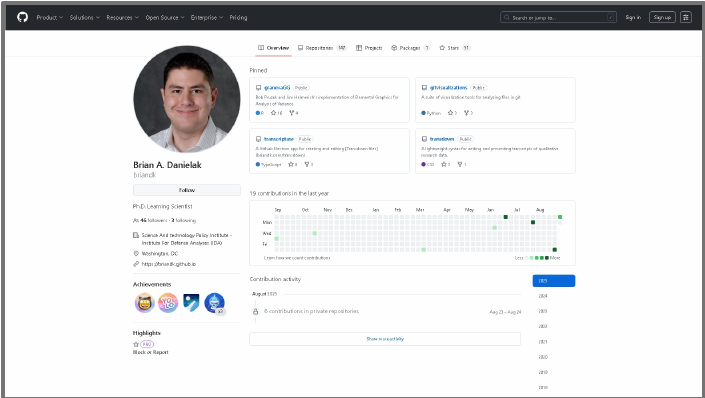

SourceOriginal website

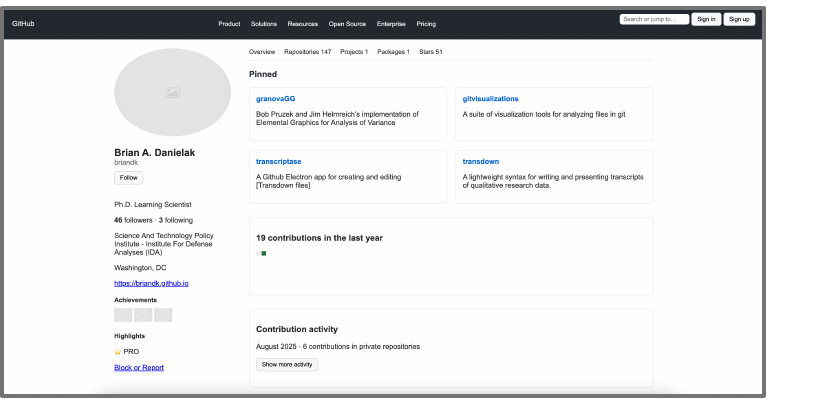

BaselineGPT-4o

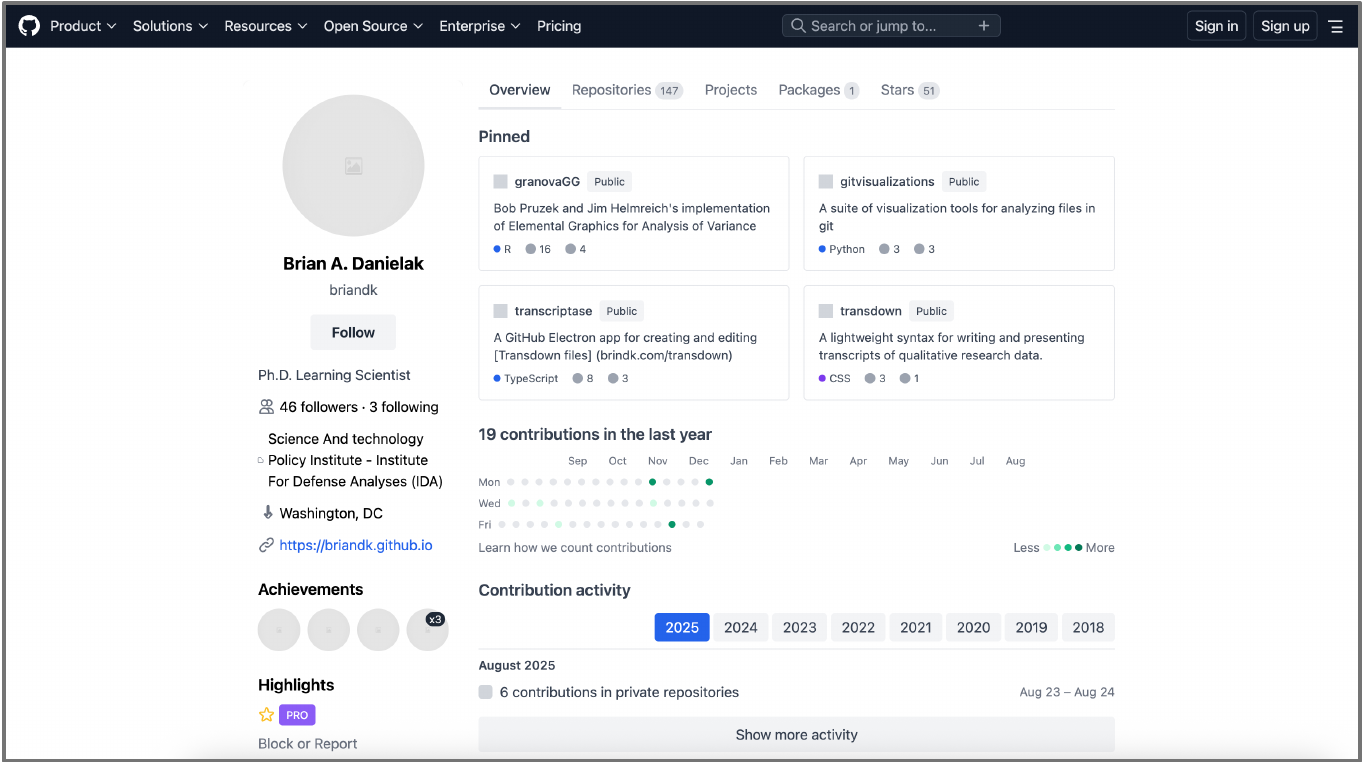

ScreenCoderOurs

Citation

Reference the Paper

@article{jiang2025screencoder,
  title   = {ScreenCoder: Advancing Visual-to-Code Generation for Front-End Automation via Modular Multimodal Agents},
  author  = {Jiang, Yilei and Zheng, Yaozhi and Wan, Yuxuan and Han, Jiaming and Wang, Qunzhong and Lyu, Michael R. and Yue, Xiangyu},
  journal = {arXiv preprint arXiv:2507.22827},
  year    = {2025}
}

ScreenCoder builds on open research including UIED, DCGen, and Design2Code. See the paper and repository for complete references and acknowledgements.
